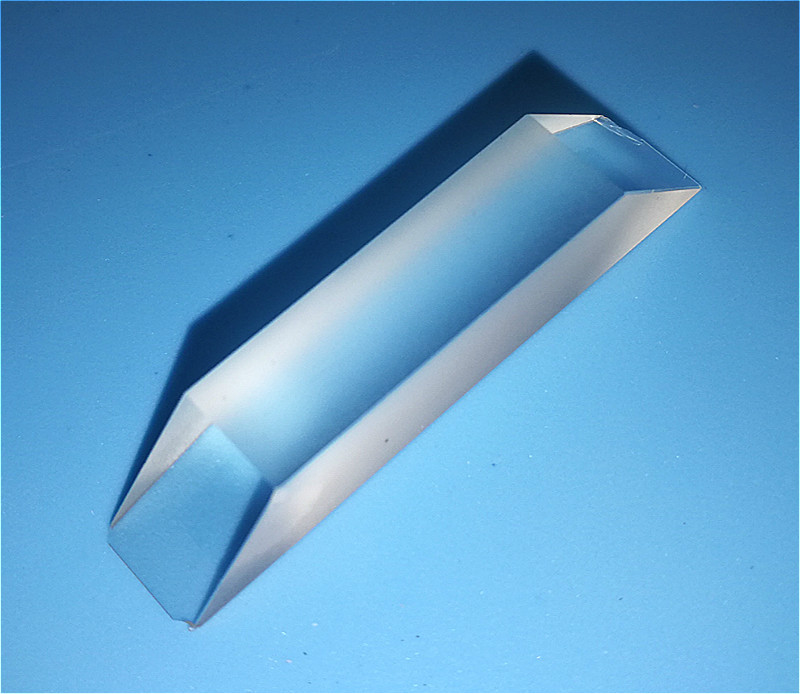

Additionally, Dove prisms affect the polarization state of light transmitted through them. When light is incident on the longest face, the Dove prism acts as a retroreflector or a right-angle prism. The light exits parallel to the input light (independent of the incidence angle) and is inverted by 180°. In situations with limited space or where more convenient mounting options are needed, the Dove prism can replace a retroreflector or right-angle prism.

Specifications:
Material:H-K9L(Optical glass,UVFS)
Dimension Tolerance：±0.1mm
Angle Tolerance：< 3’
Surface Accuracy:λ/4
Surface Quality: 40/20
Clear Aperture：>90%
Bevel: < 0.2mm×45°
Coating : Custom Design

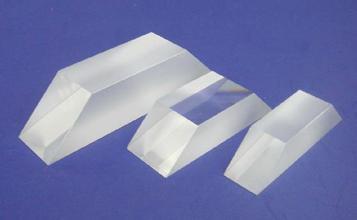

Highly recommended Dove prisms from Yutai Optics:
H-K9L(BK7) Dove Prisms,
Fused silica Dove Prisms,
Dove prisms with AR coating,
Aluminized dove prisms.

Applications:
Interferometry,
Astronomy,
Imaging system,
Pattern recognition.
