BaF2 (Barium Fluoride)

BaF2 transmits from the ultraviolet to the infrared, from 150-200nm to 11-11.5μm, and can be used as a material to make optical components such as lenses. It is used in windows for infrared spectroscopy, in particular in the field of fuel oil analysis.
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Inquiry Now
    BaF2's transmittance at 200nm is relatively low (0.60), but at 500nm it goes up to 0.96-0.97 and stays at that level until 9μm, then it starts falling off (0.85 for 10μm and 0.42 for 12μm). The refractive index is about 1.46 from 700nm to 5μm. Barium Fluoride is used as a pre opacifying agent and in enamel and glazing frits production. It is also used in metallurgy, as molten bath for refining aluminum.

Highly recommended BaF2 Optics from Yutai Optics:
BaF2 lens,
BaF2 windows.

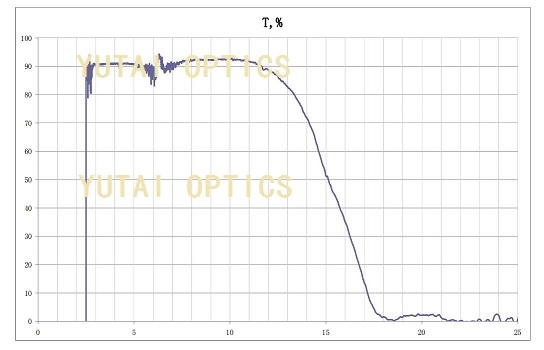

BaF2 Transmittance Chart:
